Nikita 57'

nikita

Nikita 570 is a steel hull sail motor yacht with bowsprit and profile deep keel, the deckhouse and two cockpits are made of fiberglass.

This yacht designed for marine and ocean tourism, for a comfortable water rest, voyages and sporting events, navigation area is unlimited.

The composition of the deck hardware and rigging allows few crew to manage a yacht and sail in all weather conditions.

The yacht is designed in accordance with the requirements of Lloyd's Register to class 100 AL.

Used for the construction of high-quality shipbuilding materials and equipment.

Masts: mainsail (19m / 62.3 ft) and the mizzen (13,5 m / 44.3 ft) are made of aluminum and magnesium alloys. Material hull - good low-alloy welded shipbuilding steel D32 with a yield of 32 kg/mm.

Deckhouse and cockpit are made of fiberglass. The deck and deckhouse has teak wooden floor.

Auxiliary engine «VOLVO PENTA» TMD-22 75 hp provides a boat speed of at least 10 knots and cruising range of about 500 nautical miles at a fuel supply 600 liters / 158 US gallons.

Fresh water 650 liters / 171 US Gallons are available in stainless steel tanks.

Flagman YBY ltd provides several options of internal arrangement by request.

Technical characteristics:
Length, m: 17.6 / 57.7 ft
Length on waterline, m: 13.6 / 44.6 ft
Width overall, m: 4.5 / 14.76 ft
Width of the waterline, m:
Draft, m: 2.55 / 8.36 ft
Sediment body, m:
Displacement, t: 22.6
Ballast, t:
Engine power, hp: 78
Sail area, sq.m.: 145

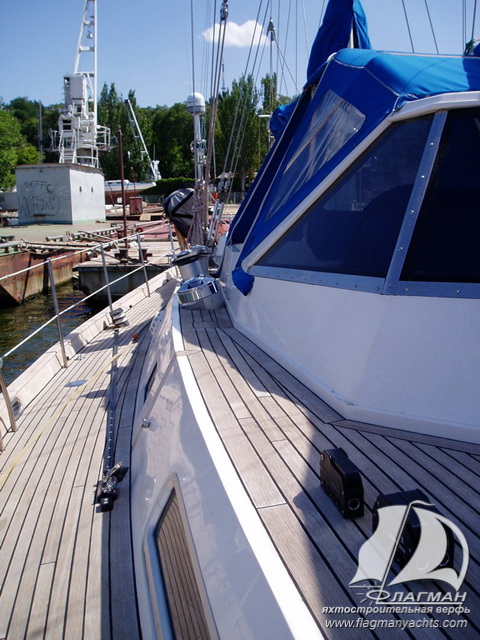

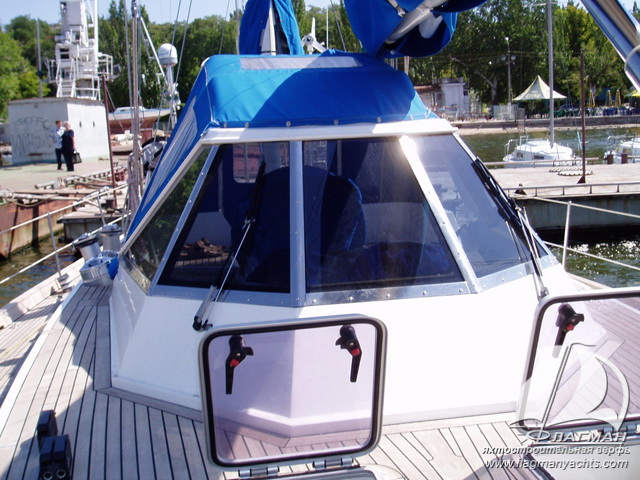

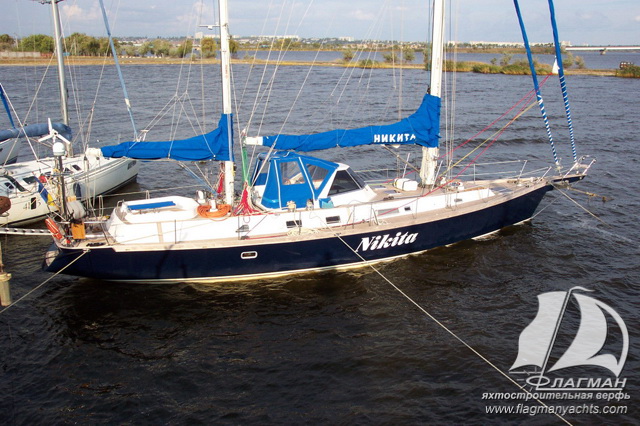

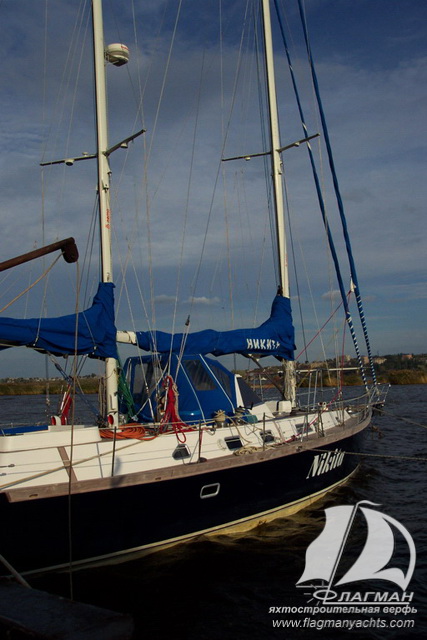

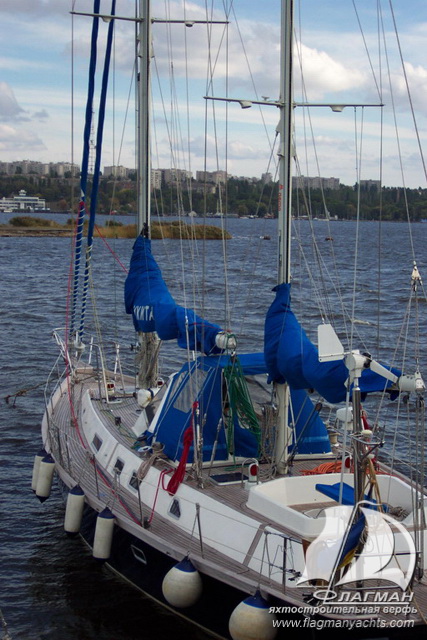

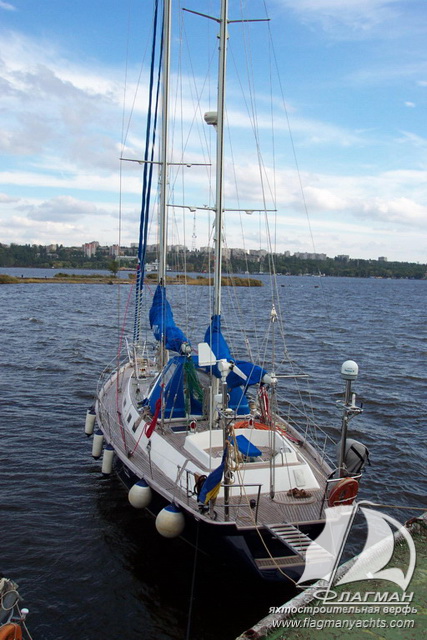

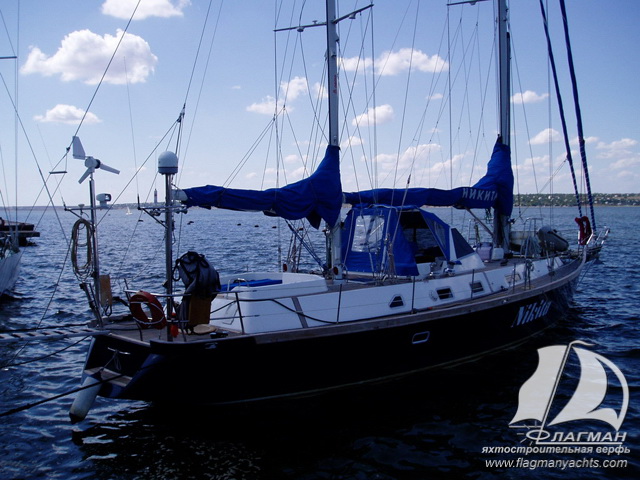

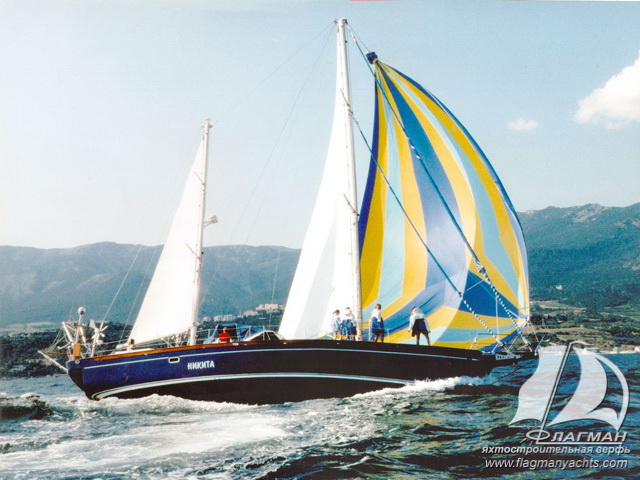

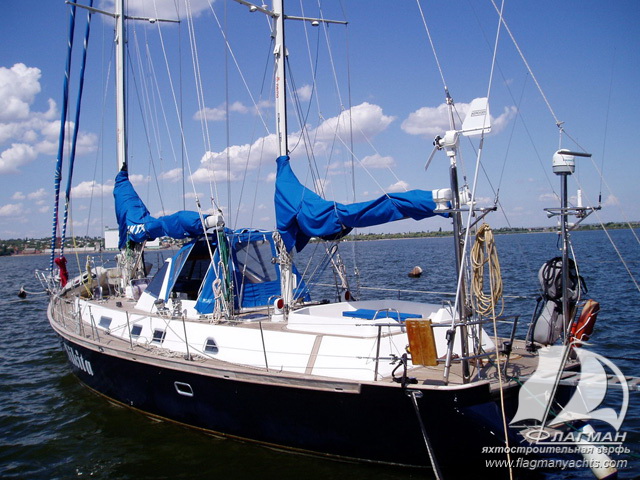

Exterior:
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita

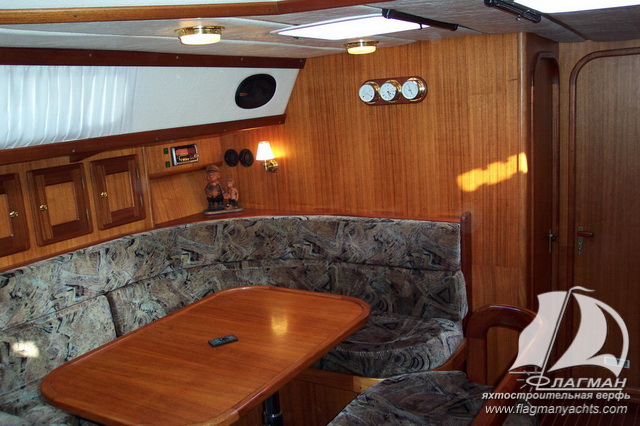

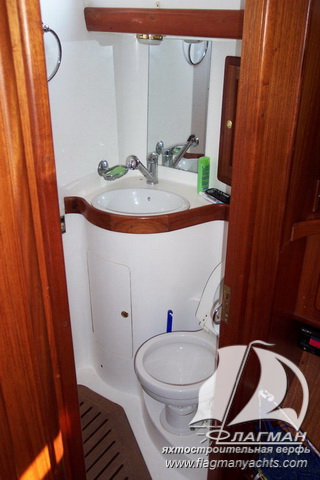

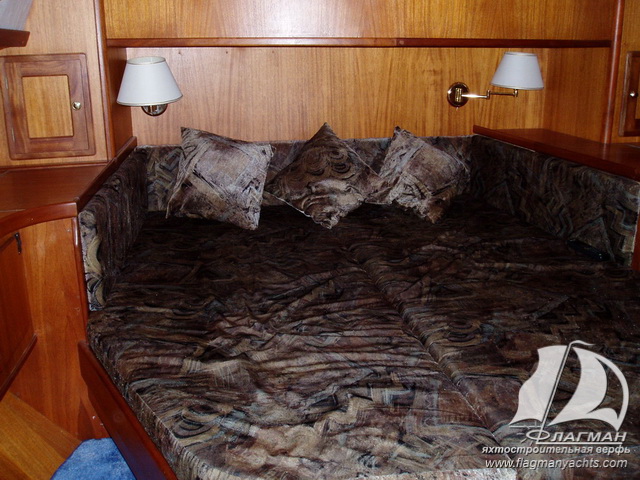

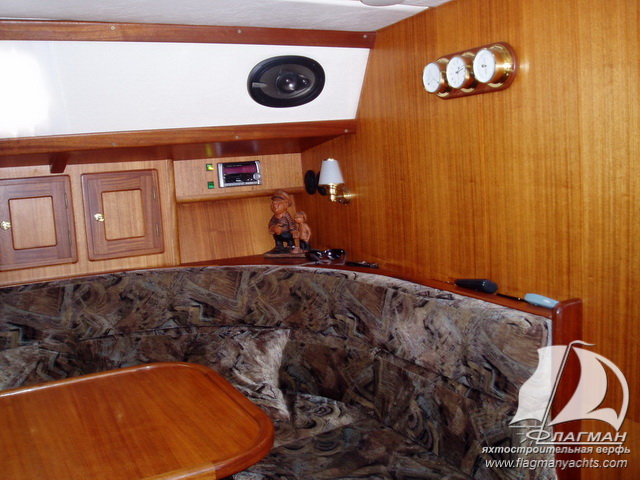

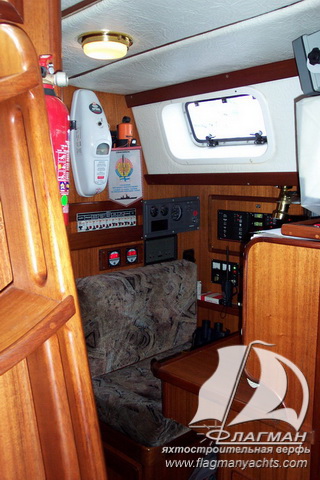

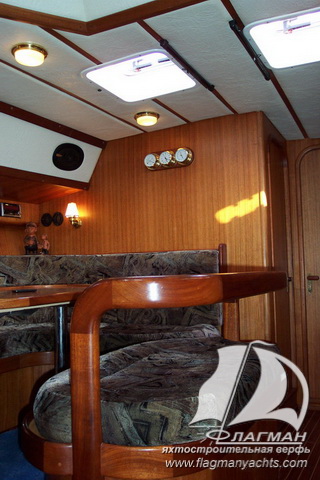

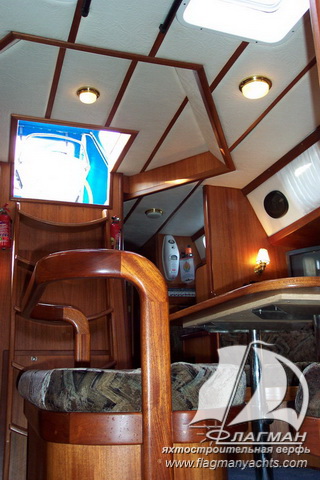

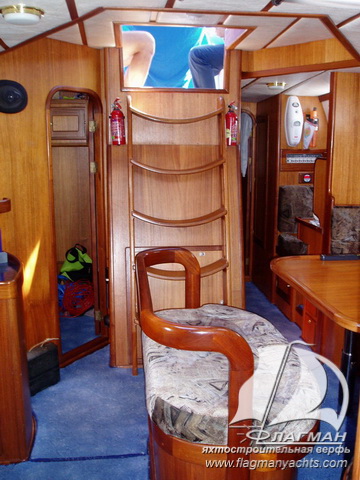

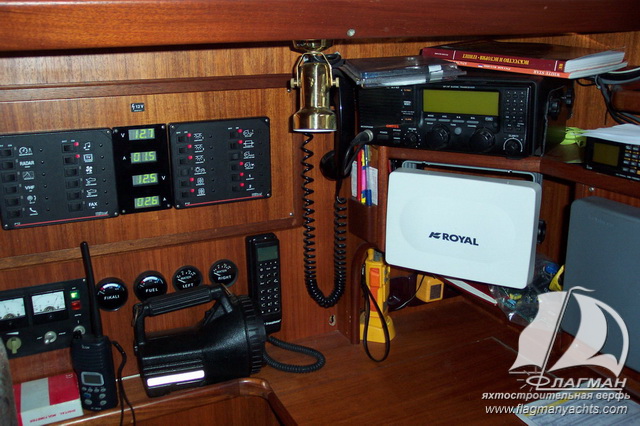

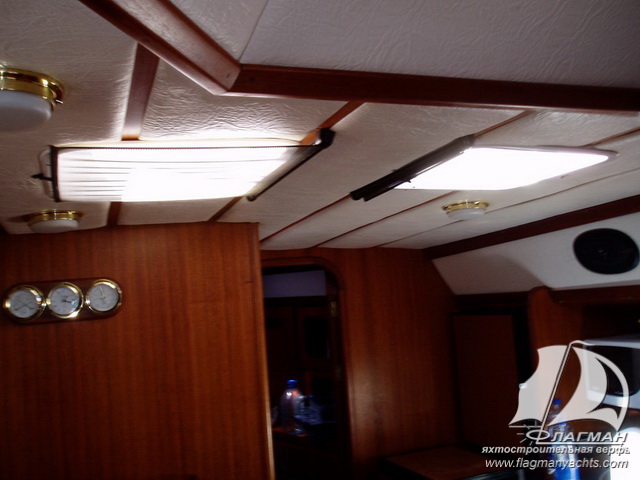

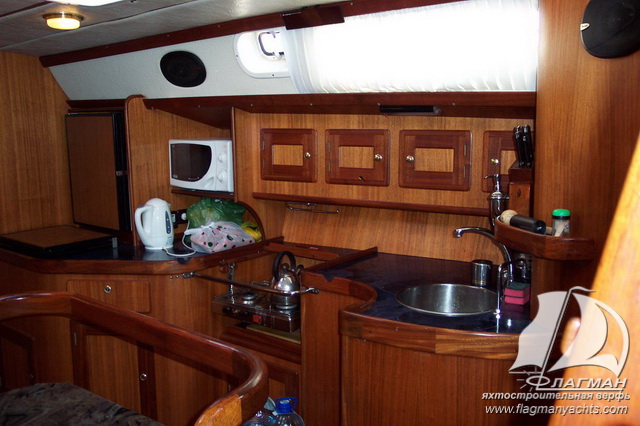

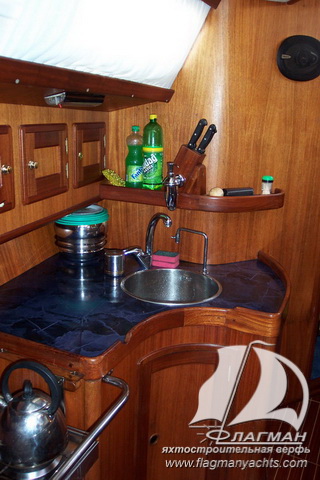

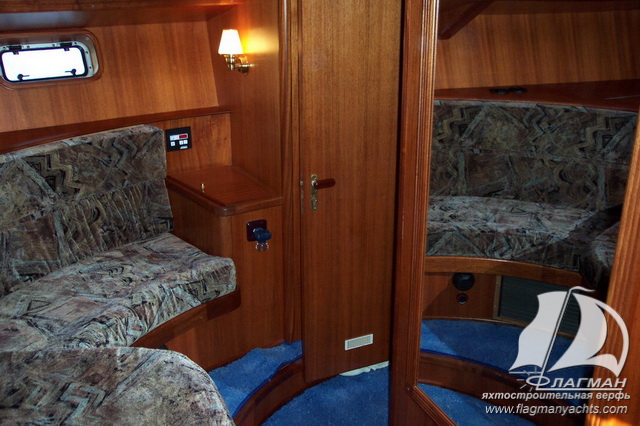

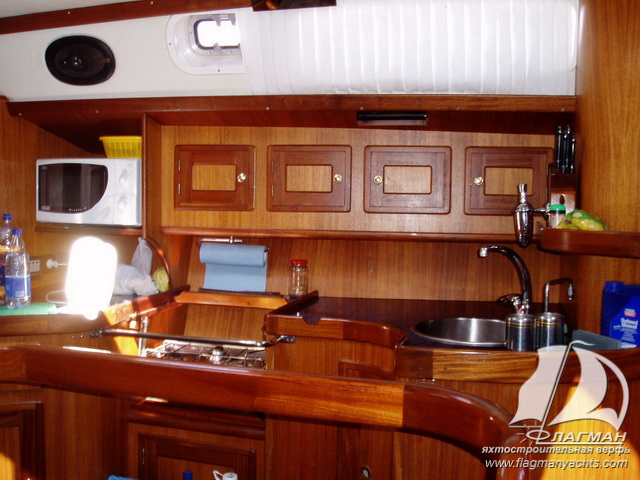

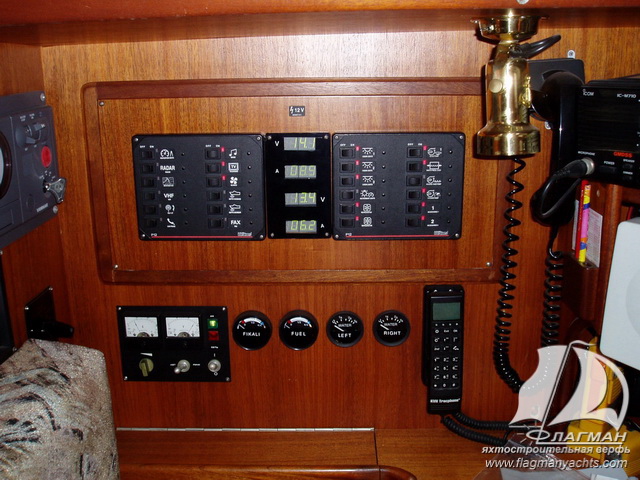

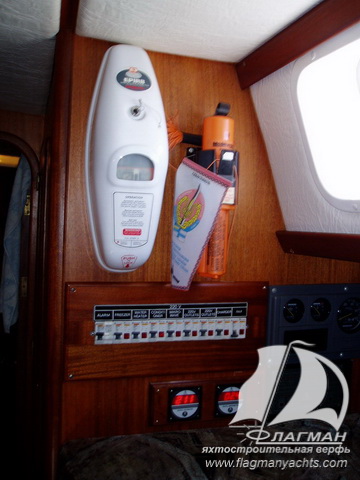

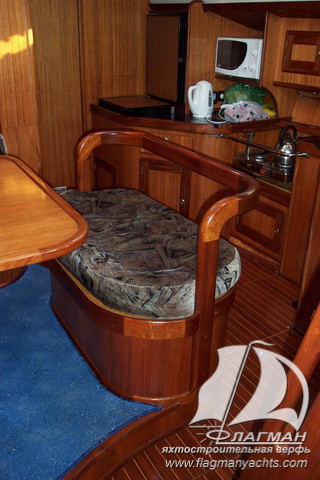

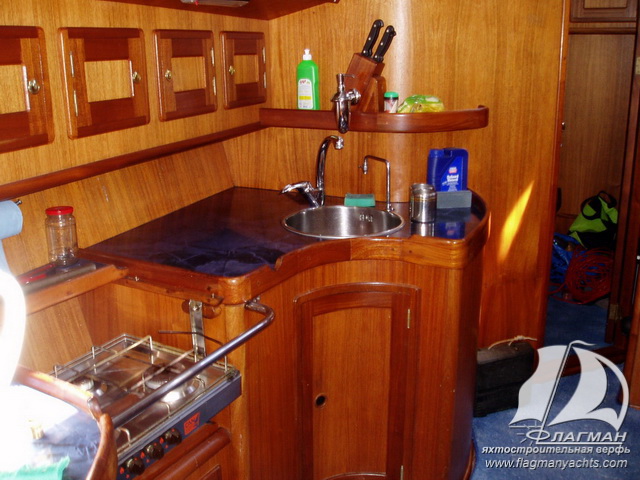

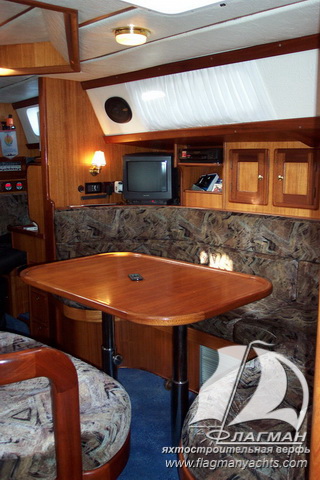

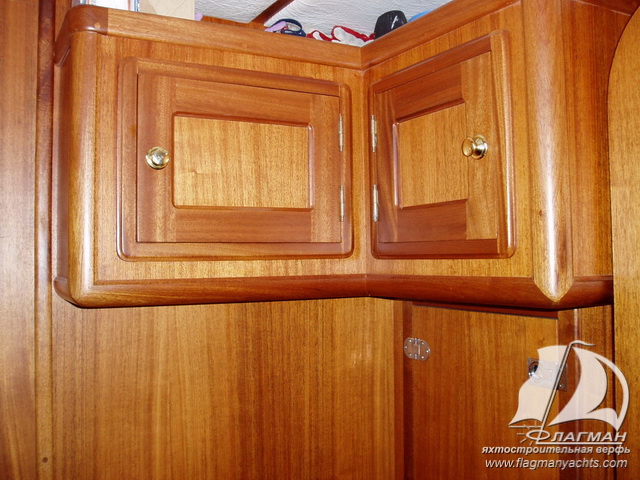

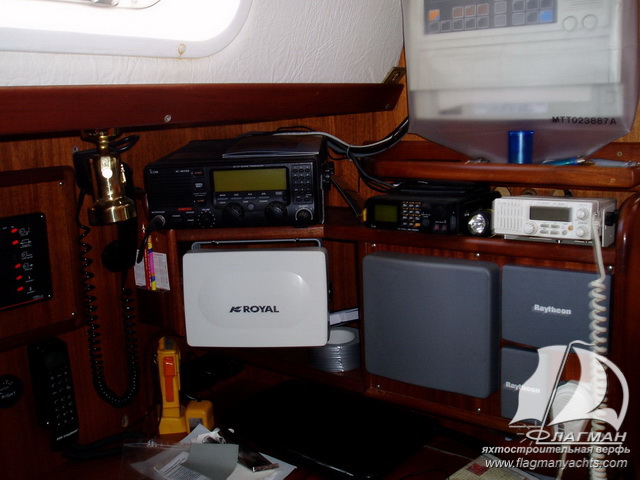

Interior:
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
nikita
