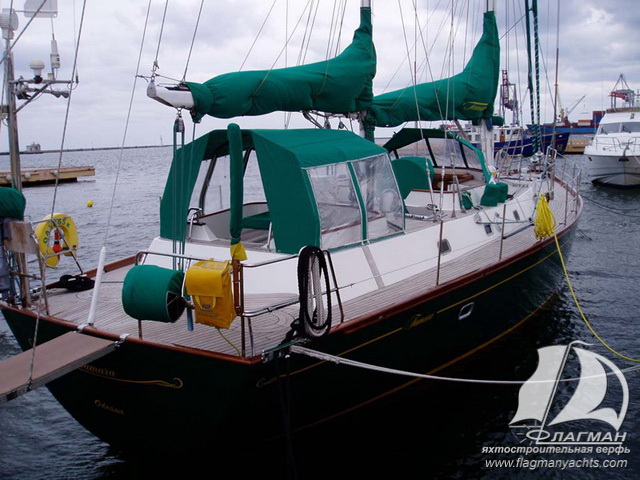

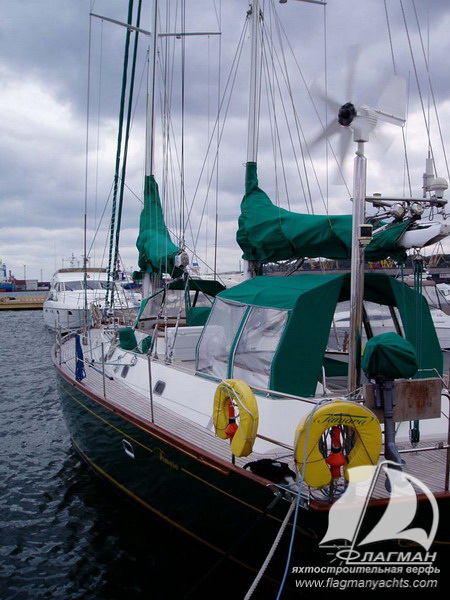

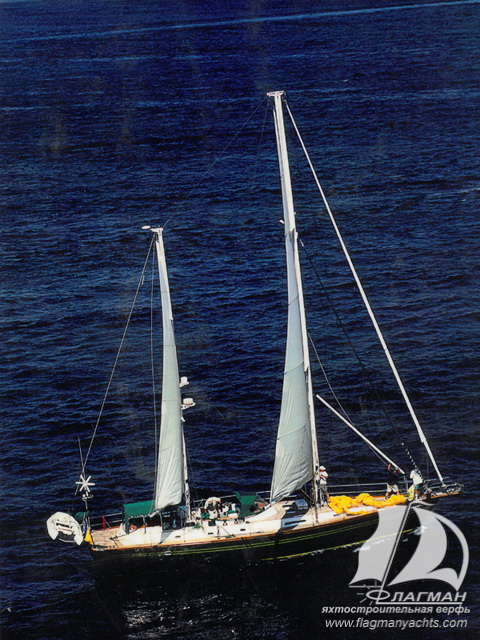

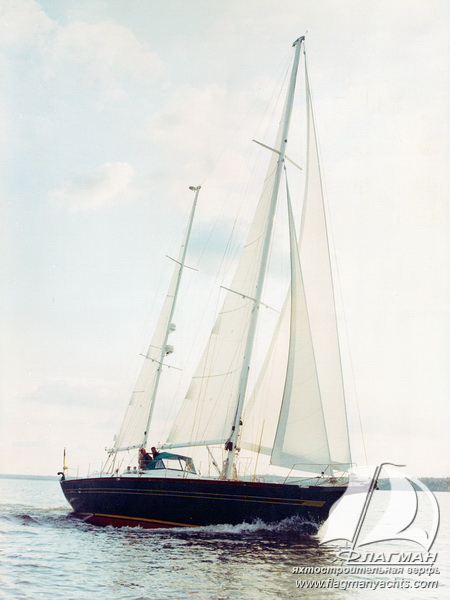

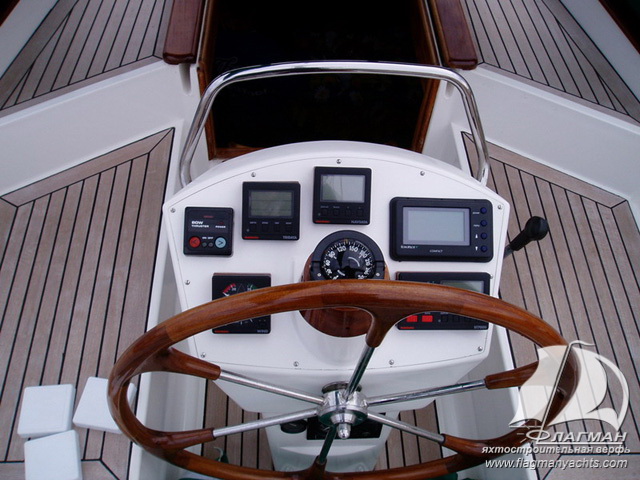

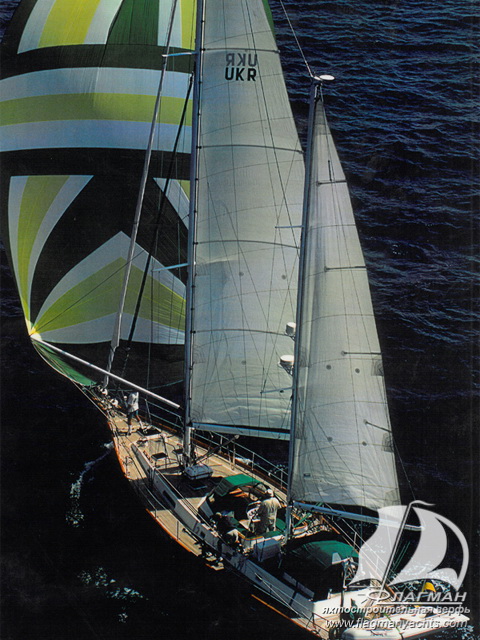

Steel hull with core deep keel and twin mast sail-motor yacht Flagman 570 have a fiberglass deckhouse and two cockpits.
This yacht for pleasure sea and ocean voyages in all parts of the world's oceans.
The general location of premises and equipment means the main idea: maximum comfort, minimum crew, usability, reliability and safety of the boat.
Yacht was designed by Lloyd's Registor class 100AL.
We used the high-quality shipbuilding materials and equipment during construction.

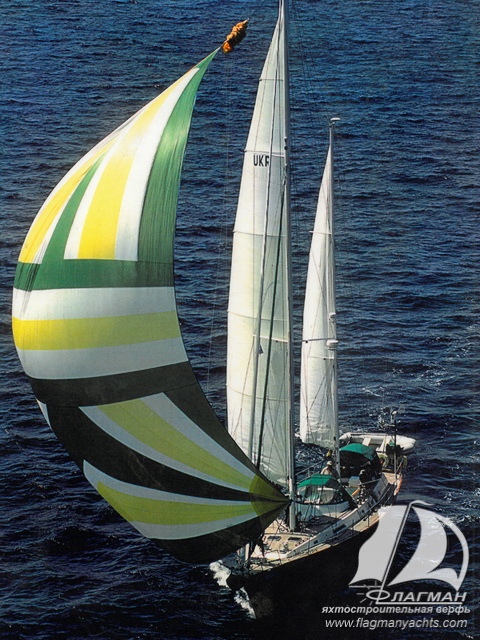

The masts are made of aluminium and magnesium alloys.
The yacht hull material is made of low-allow good welded shipbuilding steel model D32 with yield 32kg/sq.mm.

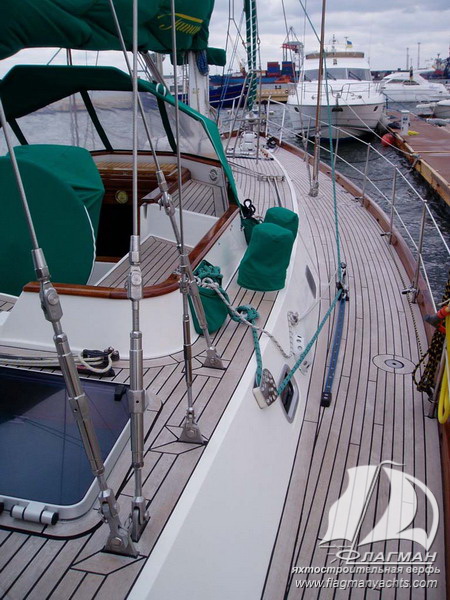

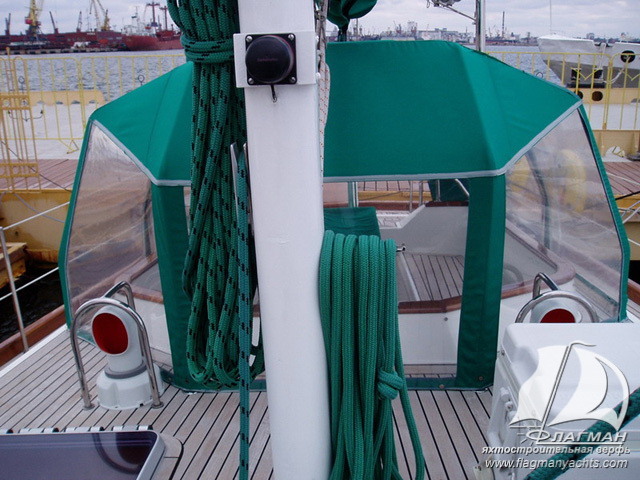

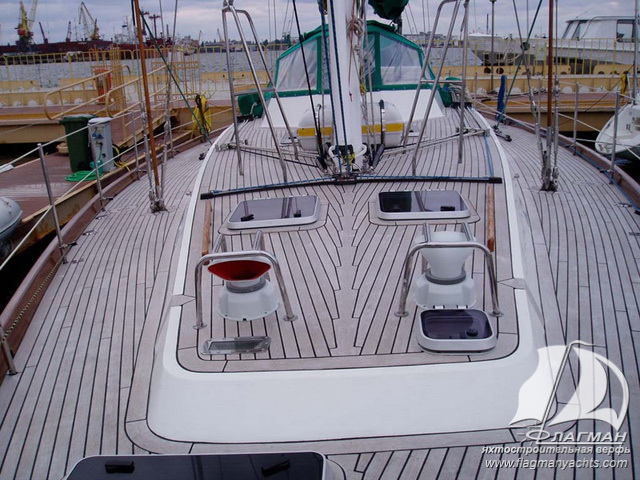

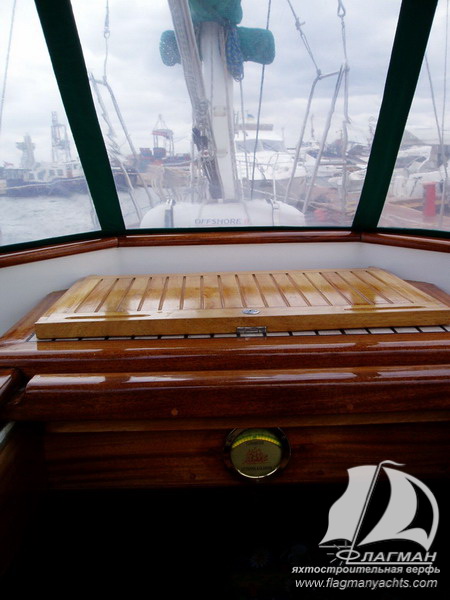

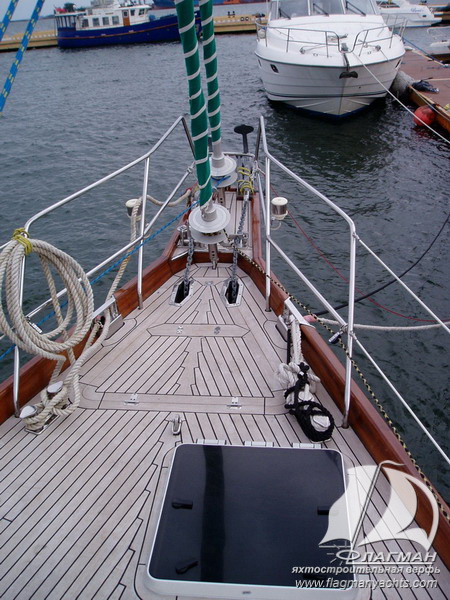

Deckhouse and cockpits are made of fiberglass and have teak covering.

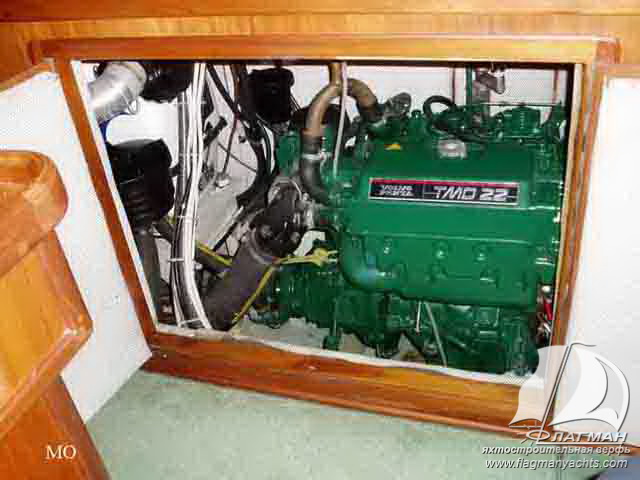

The power 75hp of the main engine Volvo Penta TMD22 provides an average speed of 10knots and cruising range of about 500 nautical miles with a fuel tank of 600L / 158 US Gallons.

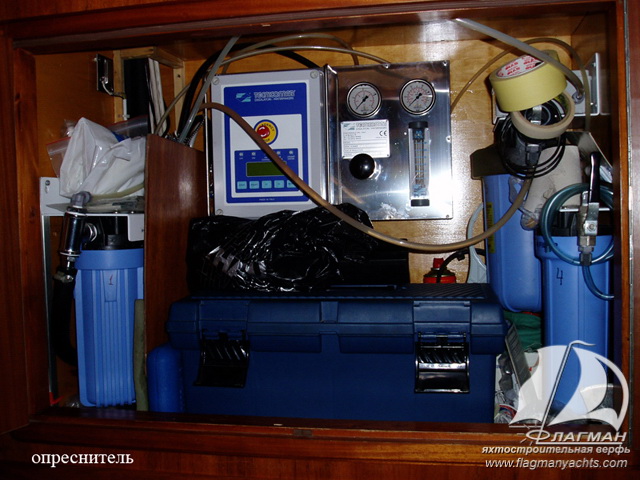

Fresh tanks capacity 700L /185 US Gallons is made of food range stainless steel.

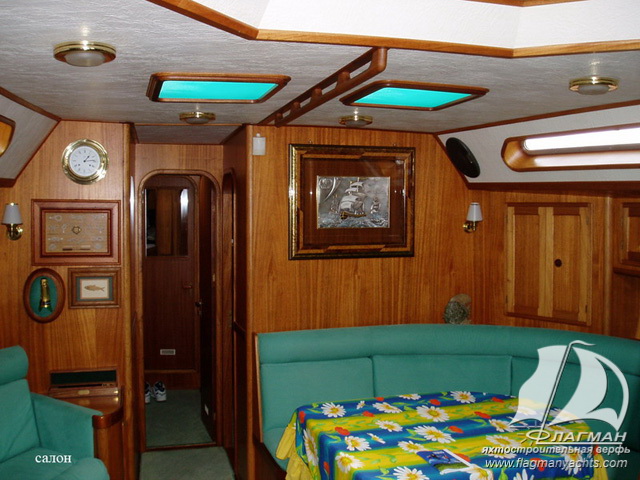

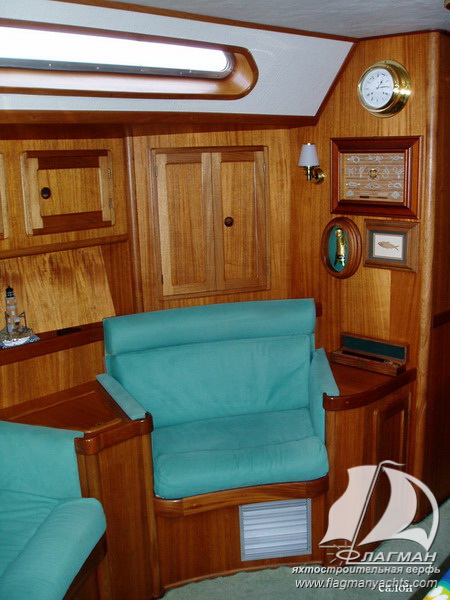

Premises are equipped with air conditioning, mechanical ventilation, ample natural and artificial lighting.

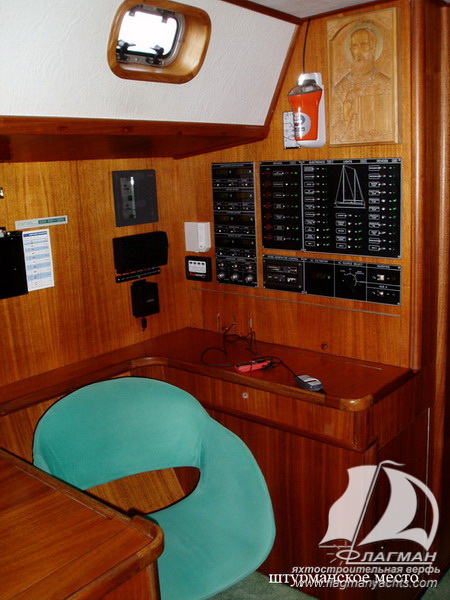

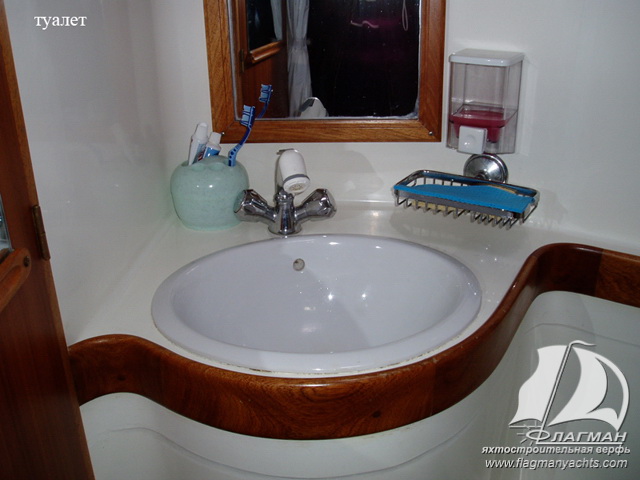

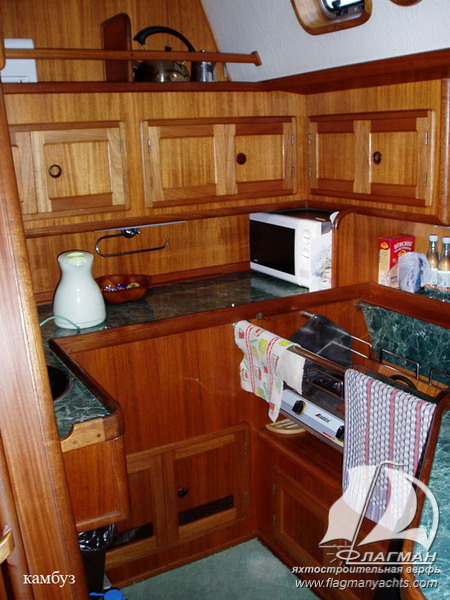

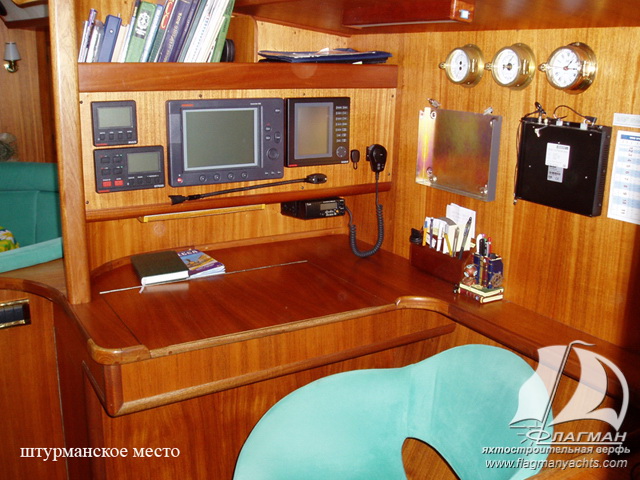

Yacht systems provide hot&cold water to WC,galley and deck and equiped with a navigation and communication systems.
|Length, m:||17.48 / 57.4 ft|
|Length on waterline, m:||14.38 / 47.1 ft|
|Width overall, m:||4.65 / 15.2 ft|
|Width of the waterline, m:|
|Draft, m:||2.5 / 8.2 ft|
|Sediment body, m:|
|Engine power, hp:||78|
|Sail area, sq.m.:||150.0|

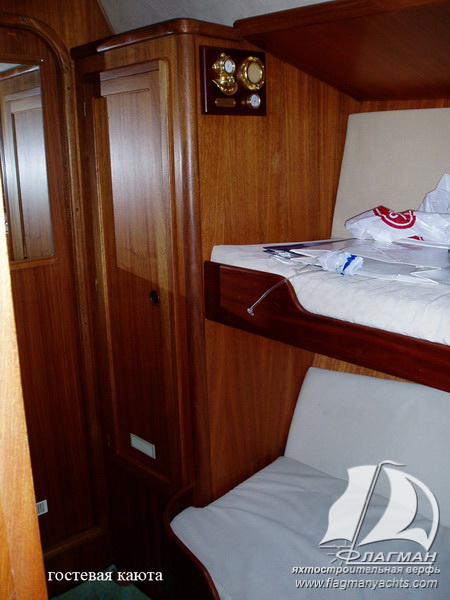

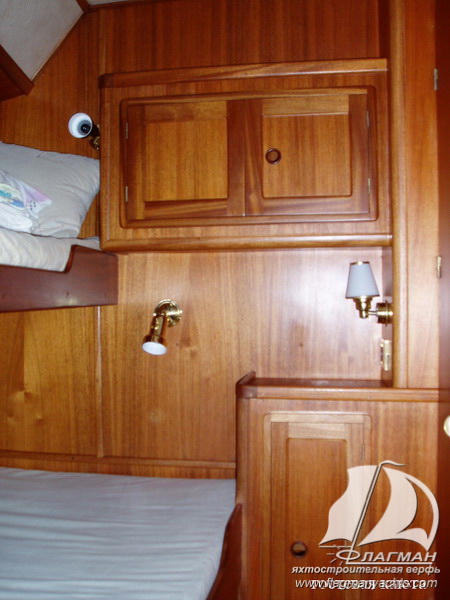

|Number of cabins:||3|
